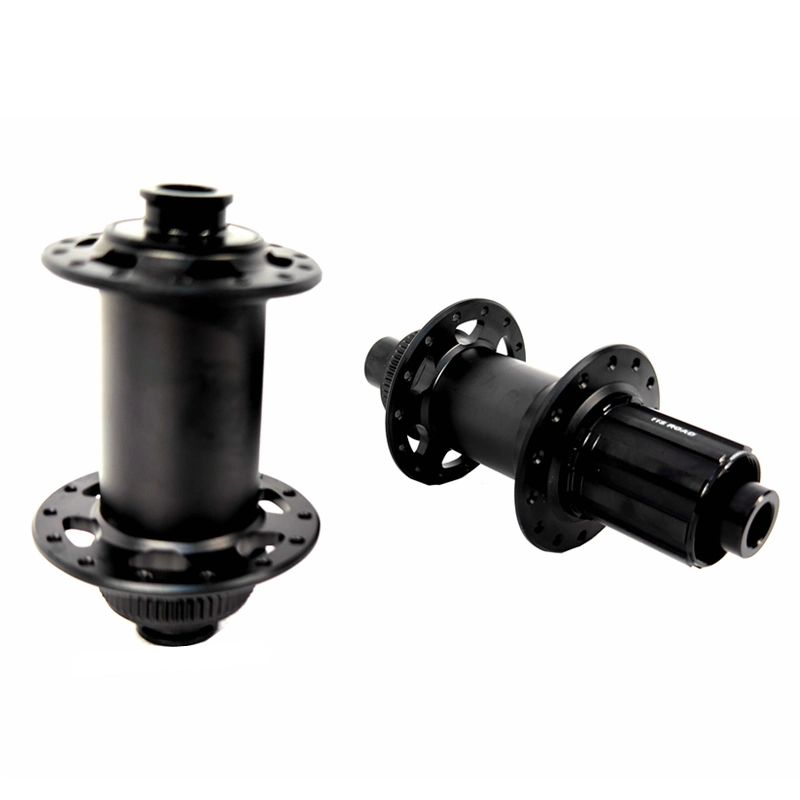

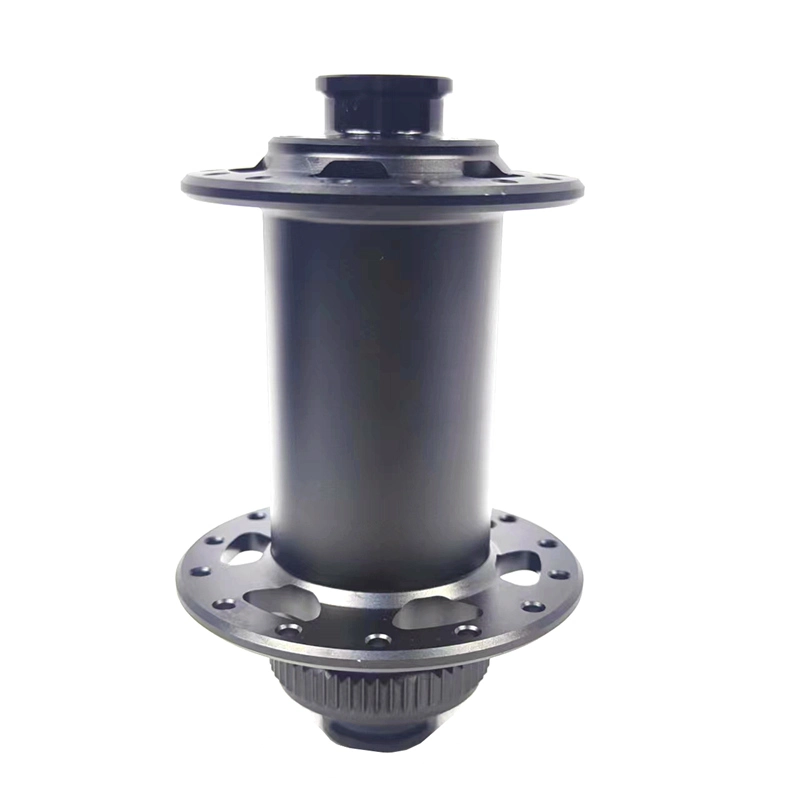

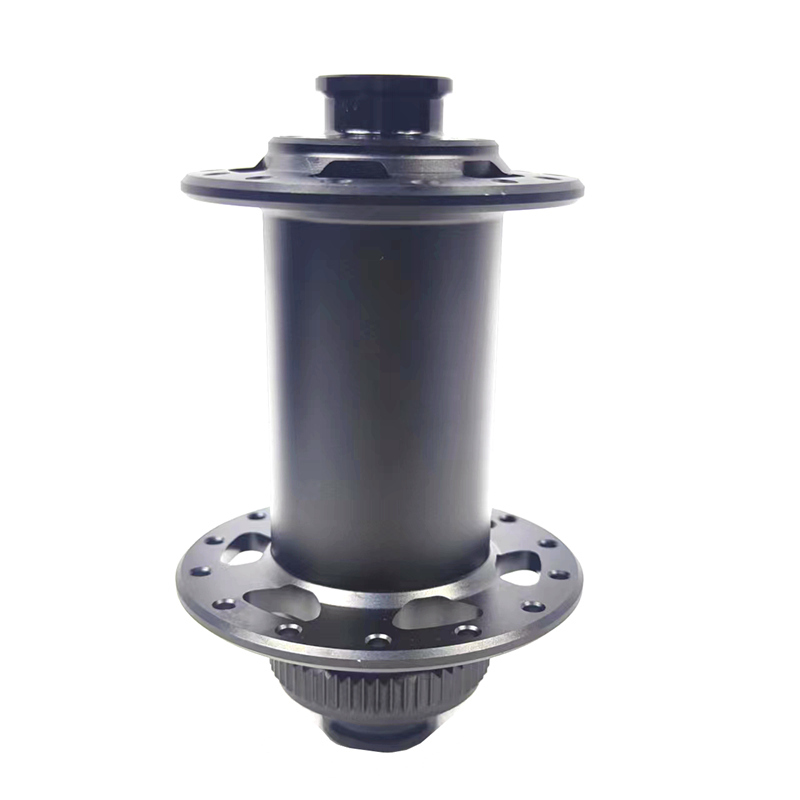

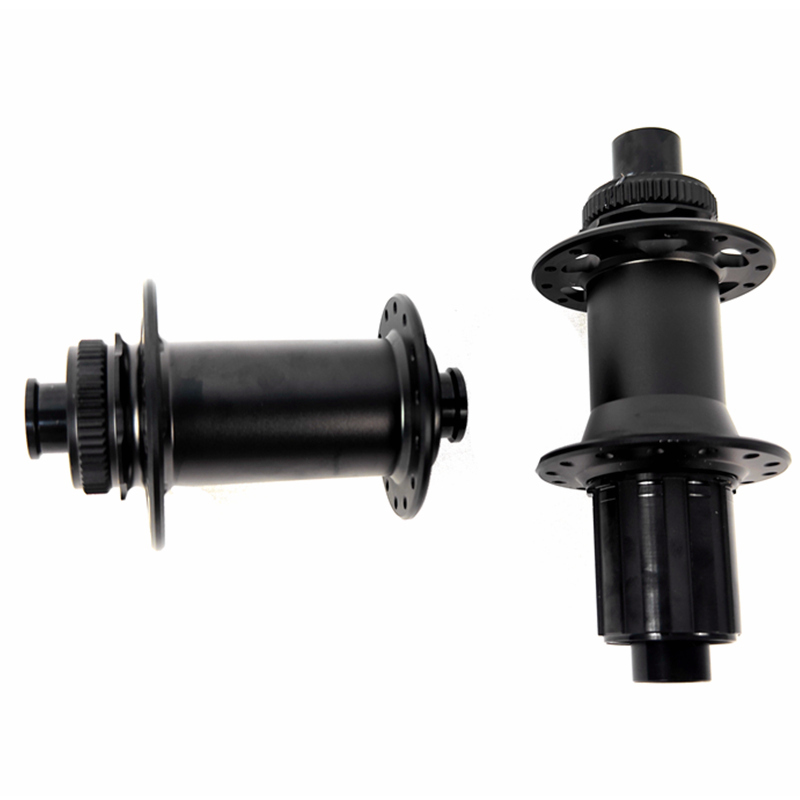

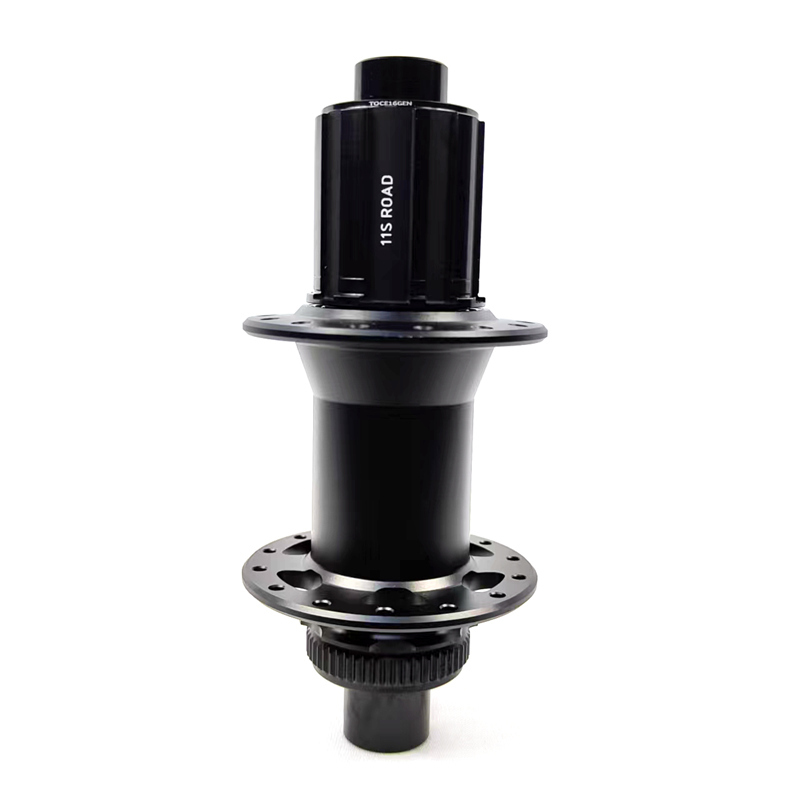

28 Holes J Bend Road Disc Brake Hub Rachet 36T Chinese Bicycle Hub

SKU:
Road disc brake hub j bend 12*100mm 12*142mm or 9*100mm 10*135mm with 6 bolts or center lock brake system
0.0 (0 Reviews)
0 Sold
$0.00 $150.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Front Hub:
    9*100MM
    12*100MM
    15*100MM
    15*110MM
  • Rear Hub:
    10*135MM
    12*142MM
    12*148MM
  • Brake Type:
    Center Lock
    6 Bolts
  • Cassete:
    Micro Spline 12S
    XD
    Sh1mano 11S
  • Front Spoke Hole:
    32H
    28H
  • Rear Spoke Hole:
    32H
    28H
  • Unit:
    Pair
    Please select the information you wantX
Quantity
-
+
  • 28 Holes J Bend Road Disc Brake Hub Rachet 36T Chinese Bicycle Hub
  • 28 Holes J Bend Road Disc Brake Hub Rachet 36T Chinese Bicycle Hub
  • 28 Holes J Bend Road Disc Brake Hub Rachet 36T Chinese Bicycle Hub
  • 28 Holes J Bend Road Disc Brake Hub Rachet 36T Chinese Bicycle Hub
  • 28 Holes J Bend Road Disc Brake Hub Rachet 36T Chinese Bicycle Hub
  • Description
  • BIKEDOC
  • FAQ
Description
Product Name:MTB /Road Hub
Model:LACDM2832
Feature:Rachet 36T

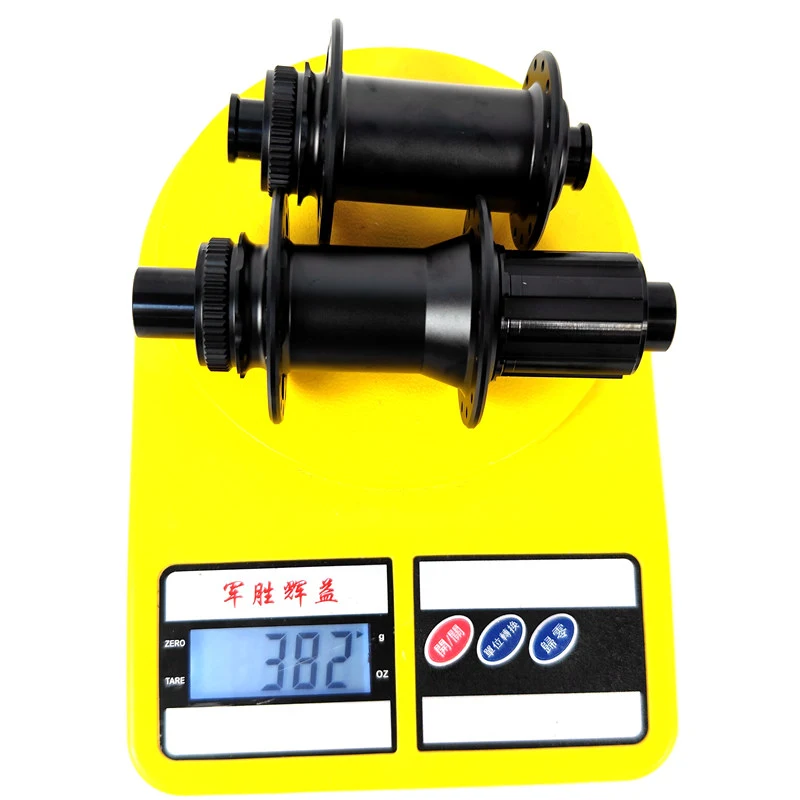

Weight:Around 385g
Holes:28H/32H
O.L.D:
Skewer:Front 9*100MM Rear 10*135MM
Road Thru axel:Front 12*100MM Rear 12*142MM
Boost:Front 15*110MM Rear 12*148MM
Standard:Front 15*100MM Rear 12*142MM
Brake:6 Bolts/Center Lock
Front Bearing:TPI 6902*2PC
Rear Bearing:TPI 6902*2PC
Casset Bearing:TPI 6802*2PC
Cassete Choice:Sh1mano/XD/Sh1mano Micro Spline

Design Feature
1,LSCDM2832 is made with alloy material ,Weight arount 385g
2,The another selling point is its 36T rachet with TPI bearing design ;
3,This mountain bike hub is designed with straight pull 28 holes Or 32 holes .

About Customization
1,Laser Logo, moq 15 pairs ,the color of laser effect will be alloy color only .usd5/1 pair extra with laser logo.
2,glossy logo ,original hub color is with matte finish , you can customize glossy logo ,we only charge print board cost ,usd100/1 color , only charge 1 time only :if you get many pairs  for putting logo with same size and same logo color in the future ,we dont charge cost any more .


Who We Are ?
BIKEDOC is a 10+year professional carbon bike parts maker in Xiamen (start from 2011),We have been selling bike parts to North America(40.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Western Europe(15.00%),Northern Europe(15.00%).

What Can We Supply?
Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.

Why Should You Choose From BIKEDOC ?
We team have at least 10 years of rich experience in carbon industry ,we are proficient in technology,performance and market of bike parts ,in addition,we get at least 10+ years of rich exporting experience ,serving at least 100 countries of customers .Even you are an individual or a bike shop ,we will use our professionalism and sincerity to make you have a nice shopping experience and get a warm aftersale service .

What Is Our Advantage?
Stable Employees
The operators,QC inspectors  and our trade clerks work here since from 2014(Facotry started),they are very skifully and professional which are of great importance to keep a stable quality of carbon rims .
High Grade Material
Imported Japnese Toray 700, Toray 800,Toray 1000 high grade carbon materials are used for new light version carbon rims and with our own special making technique.
Sliding Block Service
Some customers open moulds here with their own design ,we use sliding block to help them cut the mould cost while with their own personalized design .
Rich Experience
Synergy Sports bagan in carbon industry since from 2008,we have rich experience about both in manufacutre and exporting experiece which can help you avoid bad experience while u are searching new suppliers .
Strong Team Test Wheel Quality
Our team did monster tests on  our  new light weight version wheelsets in Harsh Environments ,they won lots of local races in different countries, some qualify themselves for uci championship race.
Before-Aftersale Service
When customers are choosing good supliers ,we are choosing sincere buyers. We do our best to make the wheel quality and warranty service satisfied
What Products can I customize ?

Road,Track,BMX,Fatbike,MTB,Gravel,Cyclocross carbon rims and carbon wheels ,carbon spoke wheels ,carbon frames ,carbon spokes ,carbon handlebars ,wheelbags,bicycle hubs.etc.Write an email ,our sales will give solutions.
Q:What is the aftersale service?
A:Rims/Wheels bought from our company can be warranty for 2 years .please use your bicycle in a correct way ,dont crack the rims  just to test its stiffness and then ask for a warranty ,we dont accept the man-made sabotage .Warranty is only for problem because of manufacture reson . For normal breaking of rim ,please send here detailed broken photos including id number beside the valve holes.We will replace a new rim for you .

Q:What is the lead time?
A:Preparing time for carbon Rims or Wheelsets  is for 14 working days ,if you want to use it for urgent races , please welcome to contact foren before ordering wheels.

Q:What is tire pressure for your carbon wheels?

A:For road wheels,maximum 125 psi,for mtb wheels ,maximum 60 psi,for bmx wheels ,maximum 30 psi .

Q:What is spoke tension?

A:Our carbon wheels can do maximum 130kg spoke tension .

Q:Are your clincher rims tubeless ready?

A:Yes ,all our bikedoc carbon rims can be used as both tubeless and clincher , they are compatible.
